  • - Using engineering control iron box assembly, high-end atmosphere;
  • - Built-in AC-DC switching power supply assembly;
  • - Multiple working modes: TCP/IP networking, offline;
  • - Integrates a variety of unlocking methods: management center, exit button, card swiping [requires a Wiegand reader to realize];
  • - Support 2-way reading heads to control 2-way door locks (two doors and one way);
  • - Support 4-way reading head to control 2-way door locks (two doors and two ways)
Share to

Using engineering control iron box assembly, high-end atmosphere;

Built-in AC-DC switching power supply assembly;
Multiple working modes: TCP/IP networking, offline;
The Wiegand bus communication method is adopted between the controller and the reader, which is universally applicable;
Integrates a variety of unlocking methods: management center, exit button, card swiping [requires a Wiegand reader to realize];
Support multiple advanced access control functions;
Can store user data, support stand-alone operation in disconnected mode;
Support 2-way reading heads to control 2-way door locks (two doors and one way);
Support 4-way reading head to control 2-way door locks (two doors and two ways)


Parameters




Power supply AC100-240V~50/60HZ 1A
OS Embedded
Card capacity 40000
Password capacity 20000
Door opening record capacity 50000
Working temperature -20℃~70℃
Working humidity 10%~93%
Appearance material engineering iron box
Installation method wall-mounted

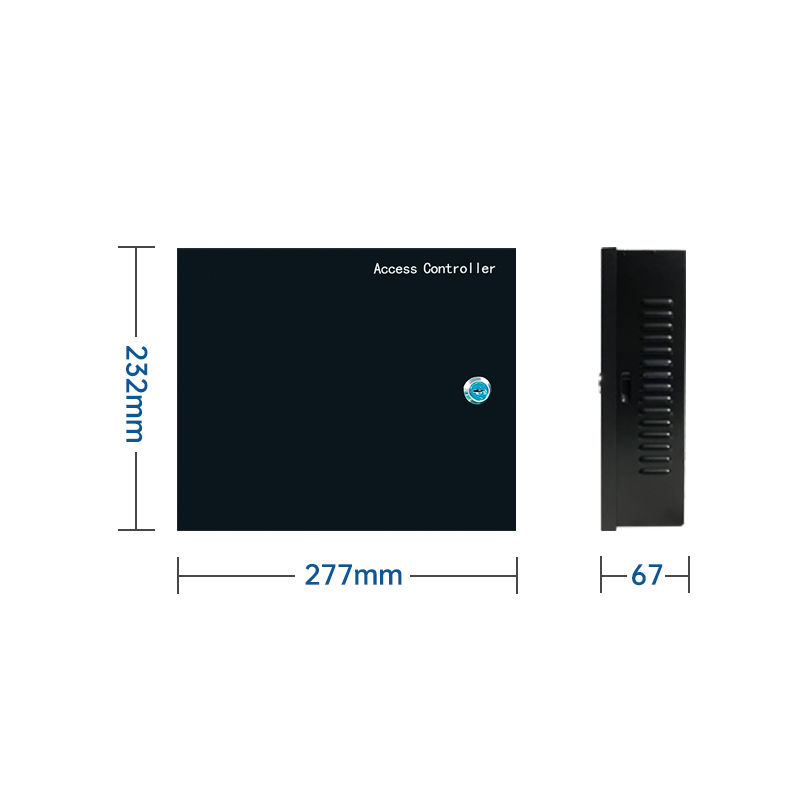

Appearance size 277x232x67MM

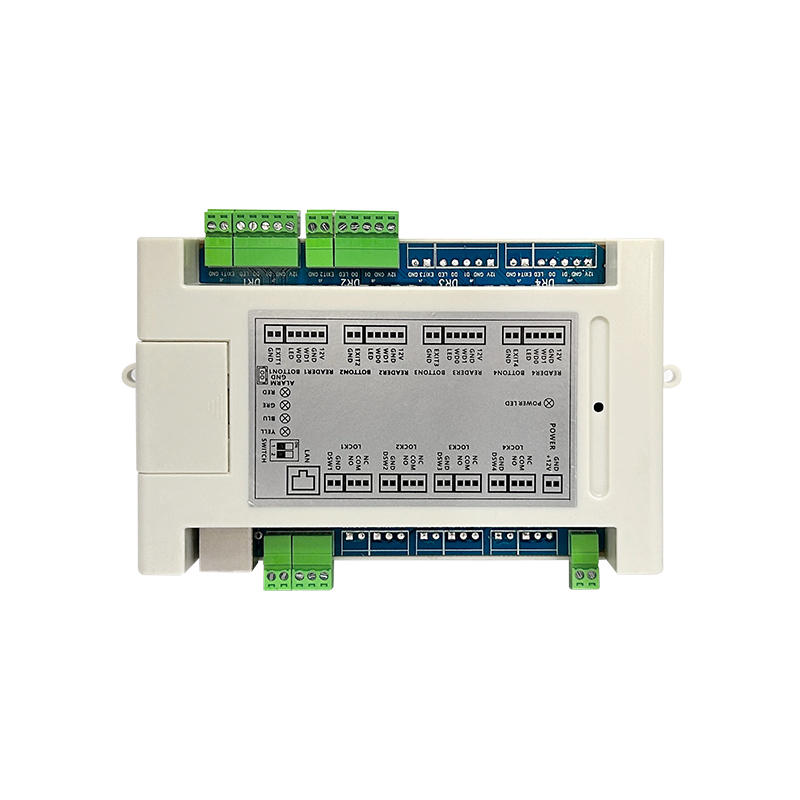

External Interface
Power supply 12V power interface
Network 1 RJ45 10M/100M adaptive Ethernet port
Exit button 2 groups of exit button signal detection input interface
Door sensor 2 groups of door sensor signal detection input interfaces
Fire linkage 1 set of fire linkage detection input interface
Unlocking 2 sets of common ports, normally open and normally closed ports
