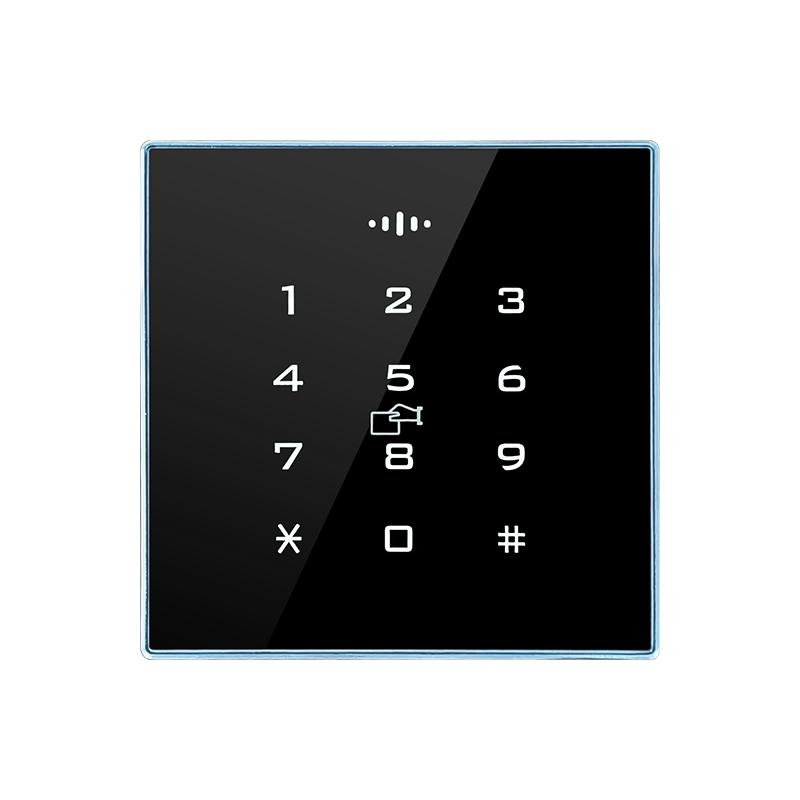

TD-RM01
- - Ultra-thin body, Appearance of pure aluminum frame + tempered glass lens material;
- - Using the glue filling process, it can realize the waterproof function;
- - Support multiple unlocking methods: password, Swipe card(mifare);
Ultra-thin body, with built-in 86 box installation method, the visible thickness after installation is only 8MM;
Appearance of pure aluminum frame + tempered glass lens material;Using the glue filling process, it can realize the waterproof function;
Support multiple unlocking methods: password, Swipe card(mifare);
Support multiple advanced access control functions;
Can carry out local management, support management card device parameters;
Parameters
| Working voltage | DC12V |
| Standby current | 40mA±20mA |
| Working current | 60mA±20mA |
| OS | Embedded |
| CPU | ARM Cortex-M0 |
| Memory | 8K Flash: 64K |
| Reading distance | 0~4cm |
| Working temperature | -40℃~70℃ |
| Working humidity | 10%~93% |
| Appearance material | luxurious pure aluminum + glass lens |
| Installation method | embedded with 86 boxes, the inner depth of 86 boxes is required to be ≥ 50MM |

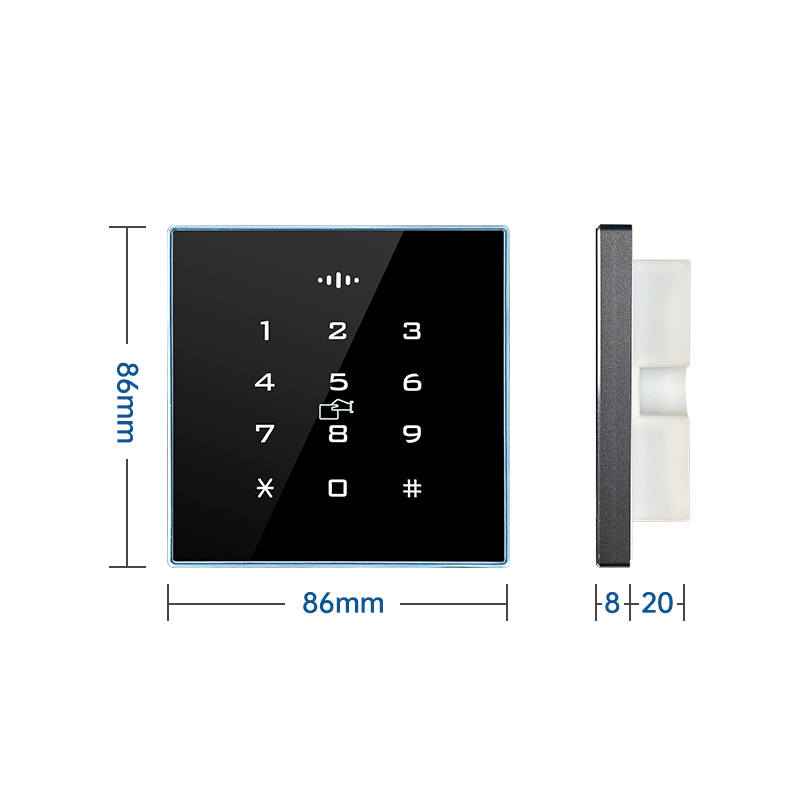

| Appearance size | 86x86x28MM |
| Bare size | 86*86*8MM |
| External Interface | |
| Power supply | 12V power interface |
| Wiegand | 1 set of Wiegand bus communication interface |
| Wiegand communication mode | 1 channel WG26/WG34 data format switching interface |
| Status synchronization | 1 channel and controller synchronization indicator/buzzer status signal interface |
