TD-S1-B
- - Tuya smart fingerprint lock.

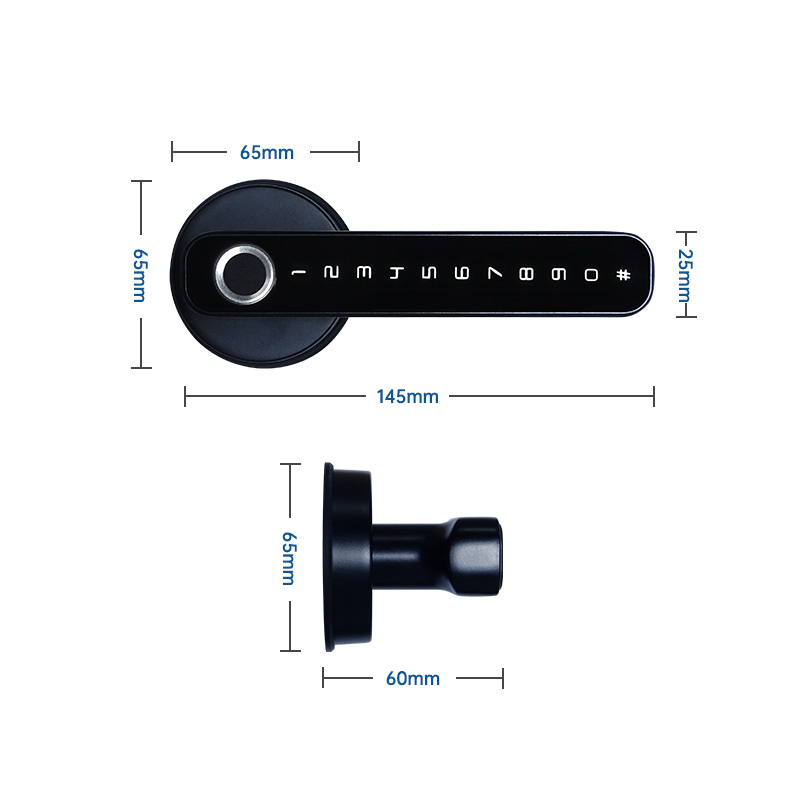

- - Size: 65x65x25mm.
- - Zinc alloy panel, black nickle treatment.
- - Works with 60/70 deadbolt mortise.
- - Unlock: fingerprint, PIN, dynamic password, key, Tuya App.
- - Semiconductor fingerprint sensor.
Versatile Unlock Methods: supports fingerprint, PIN, dynamic password, key, and remote control.
Compact Design: small at 65x65x25mm, suitable for various doors.
High Security: quick semiconductor fingerprint recognition with low false rates. Phantom password available.
Battery Powered: uses 4 AAA batteries, with low power consumption and an emergency power option.
User Friendly: voice assistant support, touch keypad, Tuya App connectivity, low voltage alarm, and fast unlock time.
Durability: adopts zinc alloy panel, black nickle treatment.
Package Information:
Inner box: 220x193x80mm/1.1kg, 1pc/box
Outer carton: 465x400x425mm/22kg, 16pcs/carton
Specifications:
| Unlock Method | Fingerprint, PIN, dynamic password, key, remote control |
| Lock Dimension | 65x65x25mm |
| Material |
Zinc alloy panel, black nickle treatment |
| Administrators Capacity | 1 |
| Fingerprint & PIN Capacity | Total 200 records |
| Password Length | 6~10 digits |
| Phantom Password | 32 digits |
| Fingerprint Sensor | Semiconductor |
| Fingerprint Contrast time | ≦0.6 Second |
| Fingerprint Identification Angle | 360° |
| False Rejection Rate | ≦0.1% |
| False Recognition Rate | ≦0.0001% |
| Reaction Time | ≦0.1 Second |
| Battery | 4pcs AAA alkaline batteries |
| Power | DC 6V |
| Emergency Power | DC 5V |
| Static Current | ≦50uA |
| Dynamic Current | ≦200mA |
| Working Temperature | -20℃~70℃ |
| Working Relative Humidity | 20%~90%RH |
| Voice Assistant | Support |
| Keypad | Standard 11-bit touch keypad |
| Low Voltage Alarm | 4.6+0.2V |
| Unlock Time | ≦1 Second |
| Tested Service Life | 300,000 times |
| Connect to Tuya App | Wifi |
