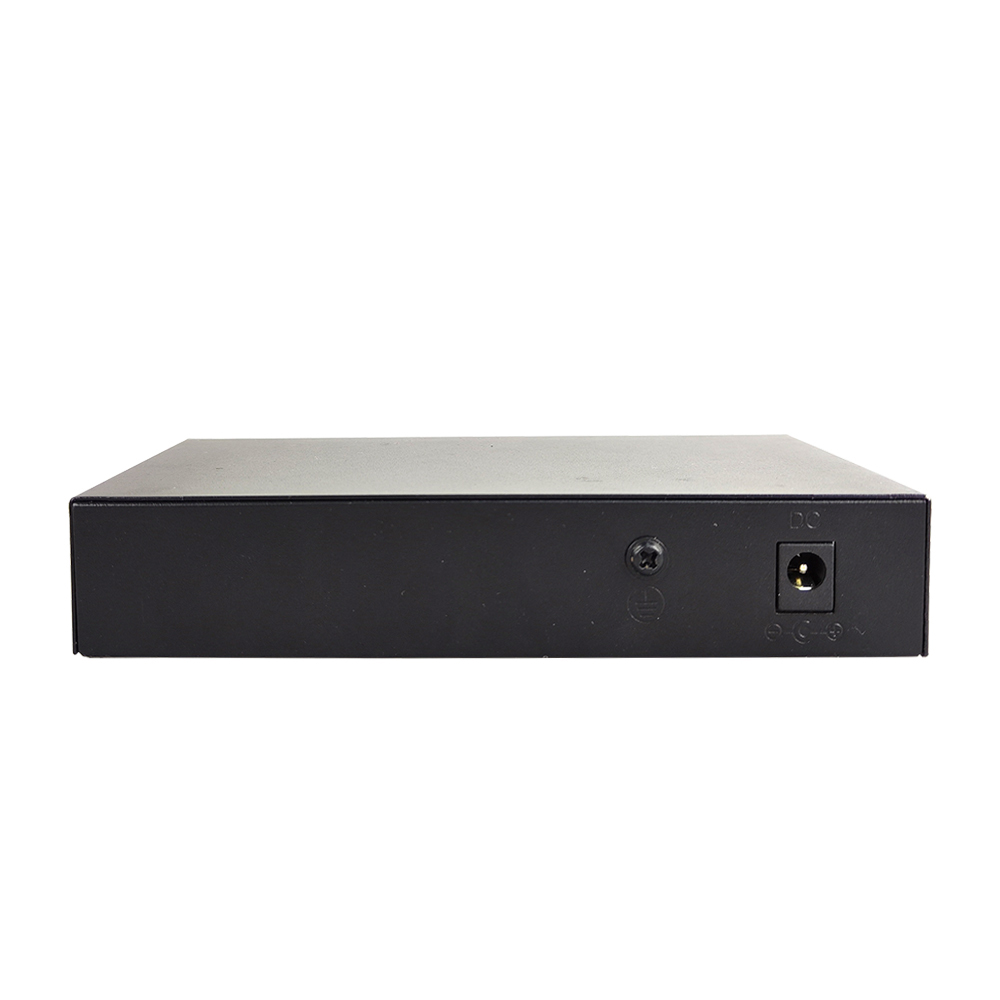

TD-S1008G
- - Product description
- - TD-S1008G series unmanaged full Gigabit Ethernet security switch, with 8 Gigabit adaptive electrical ports. Optimizing the large backplane, large cache switching chip solution, improving the forwarding rate of large files, and effectively solving the problems of video freeze and picture loss in the high-definition monitoring environment. It is suitable for hotels, banks, campuses, factory dormitories and small and medium-sized enterprises to form cost-effective networks.
Product description
TD-S1008G series unmanaged full Gigabit Ethernet security switch, with 8 Gigabit adaptive electrical ports. Optimizing the large backplane, large cache switching chip solution, improving the forwarding rate of large files, and effectively solving the problems of video freeze and picture loss in the high-definition monitoring environment. It is suitable for hotels, banks, campuses, factory dormitories and small and medium-sized enterprises to form cost-effective networks.
Non-network management model, plug and play, no need to configure, easy to use.
Product Features
nFull Gigabit rate, high-speed transmission
◇Support full Gigabit Ethernet port, high-speed, fast transmission, convenient for users to network flexibly, and meet various high-definition networking needs;
◇All ports support non-blocking wire-speed forwarding for smoother transmission.
◇Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
nEquipment is stable and reliable
◇ The host has low power consumption, active fan heat dissipation design, and metal casing to ensure stable operation of the product.
◇ Adopt self-developed power supply and high redundancy design to provide long-term stable power output.
◇ The equipment meets the national CCC standard, fully complies with CE, FCC, and RoHS safety regulations, and is safe and reliable to use.
nSimple operation
◇ Plug and play, no need to configure, simple and convenient.
◇ Users can easily understand the working status of the device through the power indicator (PWR) and port status indicator (Link/Act).
Product Specification
|
Model |
TD-S1005G |
TD-S1008G |
|
port characteristics |
||
|
Fixed Port |
5 10/100/1000Base-T RJ45 ports (Data) |
8 10/100/1000Base-T RJ45 ports (Data) |
|
Network port characteristics |
10/100/1000Base-T automatic detection, full/half duplex MDI/MDI-X adaptive |
|
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
|
|
Chip parameters |
||
|
Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3x |
|
|
forwarding mode |
Store-and-forward (full wire speed) |
|
|
Backplane Bandwidth |
10Gbps (non-blocking) |
16Gbps (non-blocking) |
|
Packet forwarding rate@64byte |
7.44Mpps |
11.9Mpps |
|
MAC address table |
2K |
|
|
packet forwarding cache |
2M |
|
|
jumbo frame |
9.2Kbyte |
|
|
LED indicator |
Power indicator: PWR (green); Data indicator: Link/Act (green) |
|
|
power characteristics |
||
|
Total power/input voltage |
5W （DC 5V） |
|
|
power consumption |
Standby power consumption: <1W; full load power consumption: <3W |
Standby power consumption: <1W; full load power consumption: <4W |
|
Power supply |
External power adapter, AC: 100～240V 50-60Hz 0.36A |
|
|
Physical Specifications |
||
|
Working temperature/humidity |
0～+55°C; 5%～90% RH non-condensing |
|
|
storage temperature/humidity |
-40～+75°C; 5%～95% RH non-condensing |
|
|
Appearance size (L*W*H) |
93*48*25mm |
140*48*25mm |
|
Net weight/Gross weight |
＜0.2kg / ＜0.4kg |
＜0.3kg / ＜0.5kg |
|
installation method |
desktop, wall-mounted |
|
|
Product Certification |
||
|
Lightning Protection/Protection Level |
Port lightning protection: 4KV 8/20us; Protection class: IP30 |
|
|
Certification |
3C；
CE mark, commercial；CE/LVD EN60950； |
|
|
Model |
Device information |
Standard Power supply |
|
TD-S1005G |
Unmanaged 5 10/100/1000M RJ45 ports, Ethernet security switch, external power supply. |
5V/1A |
|
TD-S1008G |
8 unmanaged 10/100/1000M RJ45 ports, Ethernet security switch, external power supply. |
