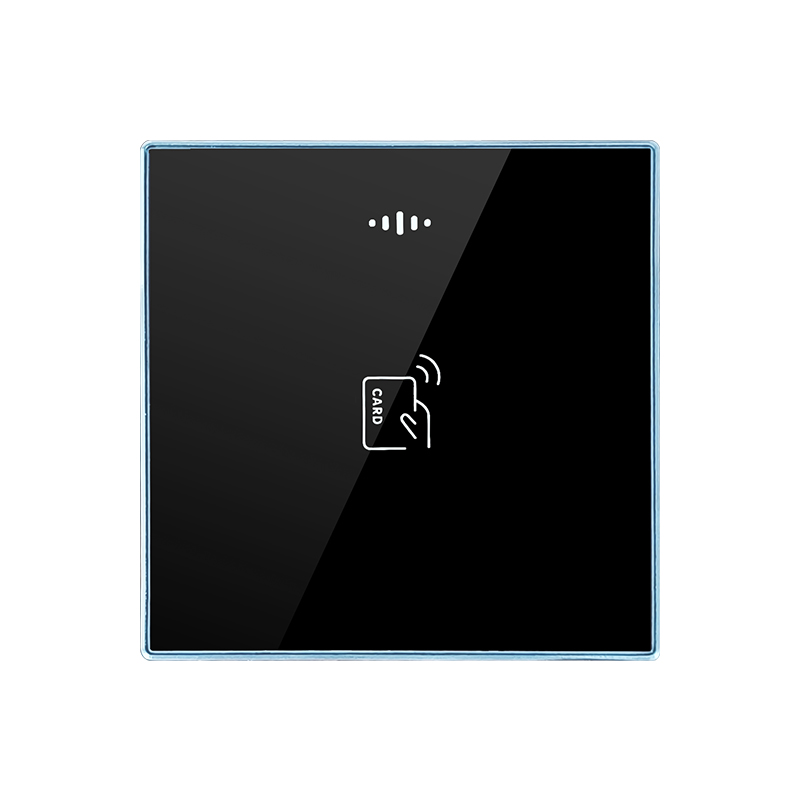

TD-10MWT
- - Ultra-thin body, appearance of pure aluminum frame and tempered glass lens material;
- - Multiple working modes: TCP/IP networking, standalone;
- - Integrates a variety of unlocking methods: card, management center, exit button;
Modes: TCP/IP networking and standalone.
Unlocking: Card, management center, exit button.
Size: Compact design at 86x86x28mm.
Power: DC12V, low standby and working current.
Capacity: 1000 cards, 1000 unlock records.
Materials: Sturdy aluminum frame, tempered glass lens.
Specifications
Working Modes
TCP/IP networking, standalone
Unlocking Methods
card, management center, exit button

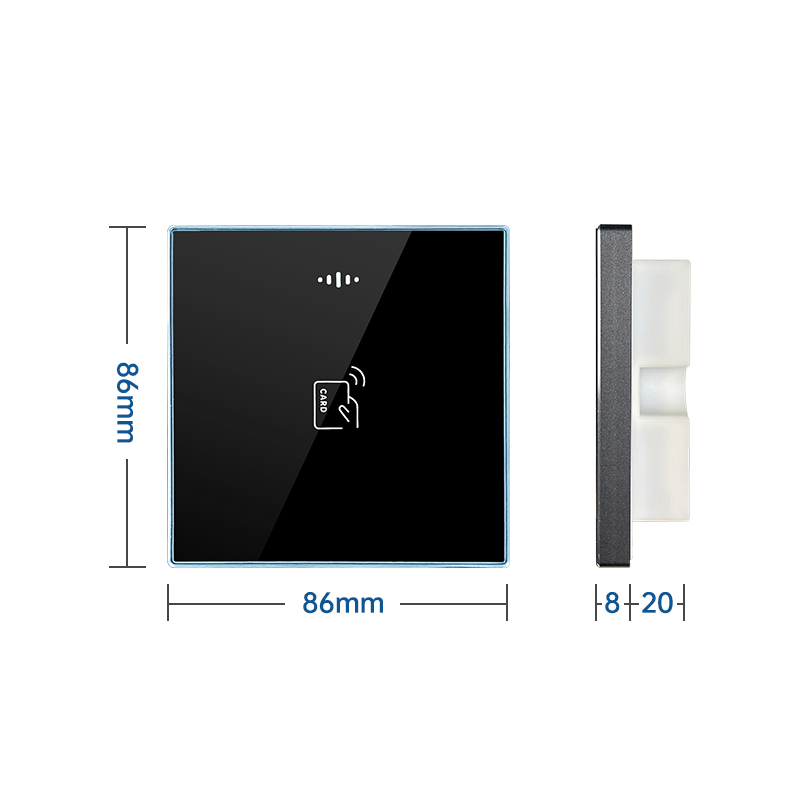

Appearance Size
86x86x28mm
Bare Size
86x86x8mm
Working Voltage
DC12V
Standby Current
110mA±20mA
Working Current
150mA±50mA
OS
Embedded system
CPU
ARM Cortex M3
Memory
20K
Flash
128K+8M
Reading Distance
0~4cm
Card Capacity
1000
Unlock Record Capacity
1000
Working Temperature
-40℃~70℃
Working Humidity
10%~93%
Appearance Material
pure aluminum frame, tempered glass lens
Installation Method
embedded with 86-style electrical box, the inner depth of 86-style electrical box is required to be ≥ 50MM
External Interface
Power Supply
12V power interface
Network
1 set of RJ45 10M/100M auto-sensing Ethernet port
485
1 set of 485 bus communication interface
Exit Button
1 set of exit button signal detection input interface
Door Magnetic Sensor
1 set of door magnetic sensor signal detection input interface
Unlock
1 set of common port, NO port and NC port
