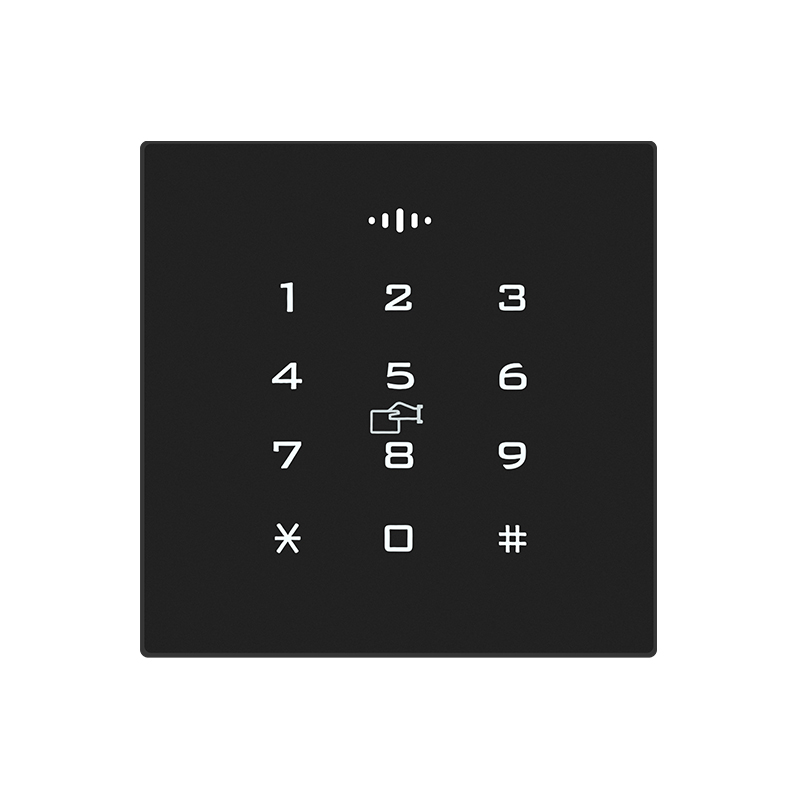

  • - Ultra-thin body, Appearance of engineering ABS plastic material;
  • - Using the glue filling process, it can realize the waterproof function;
  • - Support multiple unlocking methods: password, Swipe card(mifare);
Share to

Ultra-thin body, with built-in 86 box installation method, the visible thickness after installation is only 8MM;
Appearance of engineering ABS plastic material;
Using the glue filling process, it can realize the waterproof function;
Support multiple unlocking methods: password, Swipe card(mifare);
Support multiple advanced access control functions;
Can carry out local management, support management card device parameters;


Parameters



Working voltage
DC12V
Standby current
40mA±20mA
Working current
60mA±20mA
OS
Embedded
CPU
ARM Cortex-M0
Memory
8K Flash: 64K
Reading distance
0~4cm
Working temperature
-40℃~70℃
Working humidity
10%~93%
Appearance material
engineering ABS plastic
Installation method
embedded with 86 boxes, the inner depth of 86 boxes is required to be ≥ 50MM

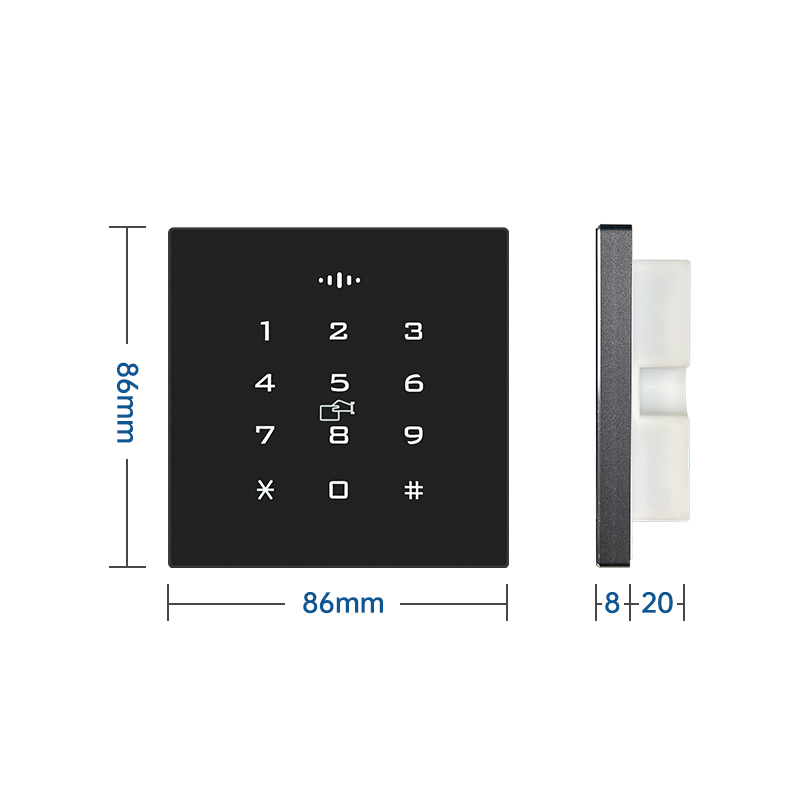

Appearance size
86x86x28MM
Bare size
86*86*8MM
External Interface
Power supply
12V power interface
Wiegand
1 set of Wiegand bus communication interface
Wiegand communication mode
1 channel WG26/WG34 data format switching interface
Status synchronization
1 channel and controller synchronization indicator/buzzer status signal interface
